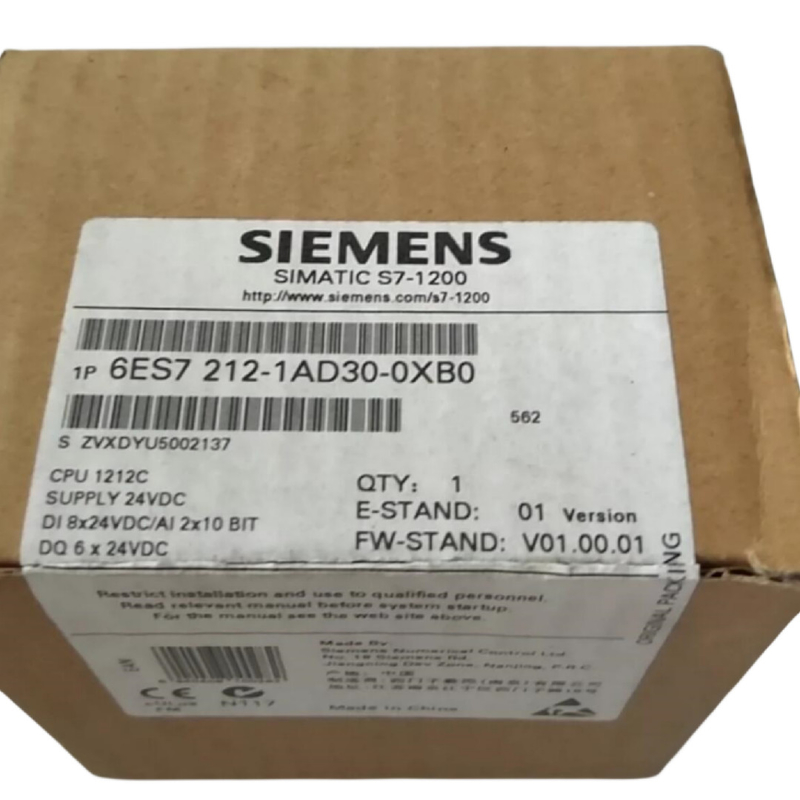

SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0
  • SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0
  • SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0
  • SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0
SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0

SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0

Place of Origin GERMANY
Brand Name SIEMENS
Certification CE
Model Number 6ES7212-1AD30-0XB0
Document Product Brochure PDF
Product Details
Highlight:

SIEMENS PLC SIMATIC S7-1200 CPU

,

1212C PLC SIMATIC S7-1200

,

SIEMENS s7 1200 cpu

Payment & Shipping Terms
Minimum Order Quantity
1
Price
250USD
Packaging Details
14,20 x 16,40 x 7,40
Delivery Time
5-10days
Payment Terms
L/C, T/T
Supply Ability
10PC
Product Description

SIEMENS CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0 SIMATIC S7-1200



SIEMENS PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC 6ES7212-1AD30-0XB0 0





Technical Specifications
Model CPU 1212C
AC/DC/Relay		 CPU 1212C
DC/DC/Relay		 CPU 1212C
DC/DC/DC
Order number (MLFB) 6ES7 212-1BD30-0XB0 6ES7 212-1HD30-0XB0 6ES7 212-1AD30-0XB0
General
Dimensions W x H x D (mm) 90 x 100 x 75
Weight 425 grams 385 grams 370 grams
Power dissipation 11 W 9 W
Current available (SM and CM bus) 1000 mA max. (5 VDC)
Current available (24 VDC) 300 mA max. (sensor power)
Digital input current consumption (24
VDC)		 4 mA/input used
CPU Features
User memory 25 Kbytes Work memory / 1 Mbytes Load memory/ 2 Kbytes Retentive memory
On-board digital I/O 8 inputs/6 outputs
On-board analog I/O 2 inputs
Process image size 1024 bytes of inputs/1024 bytes of outputs
Signal modules expansion 2 SMs max.
Signal board expansion 1 SB max.
Communication module expansion 3 CMs max.
Technical Specifications
Model CPU 1212C
AC/DC/Relay		 CPU 1212C
DC/DC/Relay		 CPU 1212C
DC/DC/DC
High-speed counters 4 total
Single phase: 3 at 100 kHz and 1 at 30 kHz clock rate
Quadrature phase: 3 at 80 kHz and 1 at 20 kHz clock rate
Pulse outputs 2 at 1 Hz pulse rate 2 at 100 kHz pulse rate
Pulse catch inputs 8
Time delay / cyclic interrupts 4 total with 1 ms resolution
Edge interrupts 8 rising and 8 falling (12 and 12 with optional signal board)
Memory card SIMATIC Memory Card (optional)
Real time clock accuracy +/- 60 seconds/month
Real time clock retention time 10 days typ./6 days min. at 40°C (maintenance-free Super Capacitor)
Performance
Boolean execution speed 0.1 μs/instruction
Move Word execution speed 12 μs/instruction
Real Math execution speed 18 μs/instruction
Communication
Number of ports 1
Type Ethernet
Data rates 10/100 Mb/s
Isolation (external signal to PLC
logic)		 Transformer isolated, 1500 VDC
Cable type CAT5e shielded
Power supply
Voltage range 85 to 264 VAC 20.4 to 28.8 VDC
Line frequency 47 to 63 Hz --
Input current
CPU only at max. load
CPU with all expansion accessories
at max. load		 80 mA at 120 VAC
40 mA at 240 VAC
240 mA at 120 VAC
120 mA at 240 VAC		 400 mA at 24 VDC
1200 mA at 24 VDC
Inrush current (max.) 20 A at 264 VAC 12 A at 28.8 VDC
Isolation (input power to logic) 1500 VAC Not isolated
Hold up time (loss of power) 20 ms at 120 VAC
80 ms at 240 VAC		 10 ms at 24 VDC
Internal fuse, not user replaceable 3 A, 250 V, slow blow
Sensor power
Voltage range 20.4 to 28.8 VDC L+ minus 4 VDC min.
Output current rating (max.) 300 mA (short circuit protected)
Maximum ripple noise (<10 MHz) < 1 V peak to peak Same as input line
Isolation (CPU logic to sensor power) Not isolated
Digital inputs
Number of inputs 8
Type Sink/Source (IEC Type 1 sink)
Rated voltage 24 VDC at 4 mA, nominal
