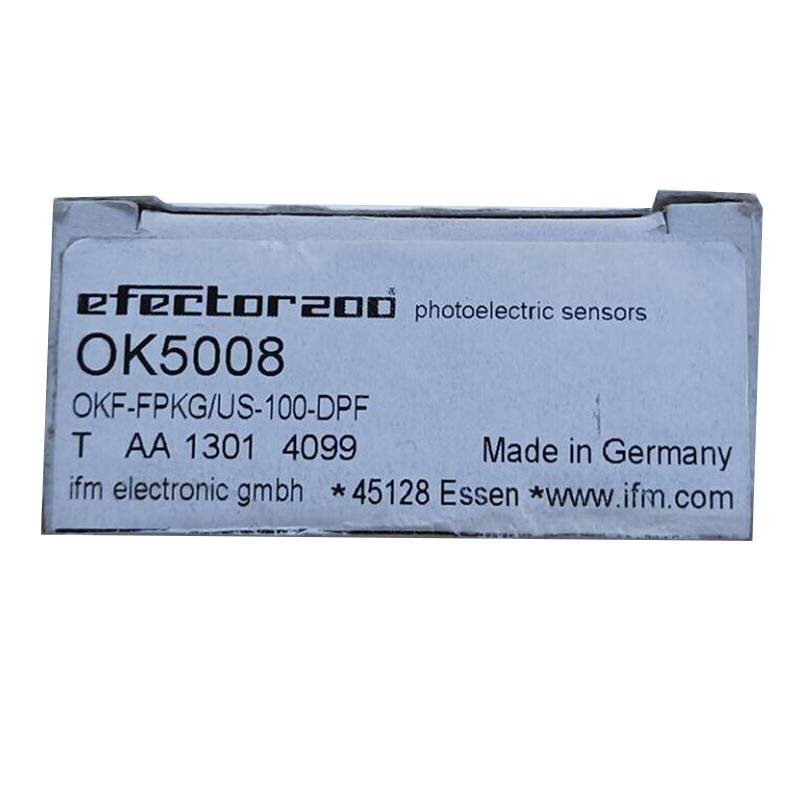

IFM Fibre-optic amplifier OK5008 OKF-FPKG/US-100-DPF
Okay, let's take a look at the details of the IFM Fibre-optic Amplifier OK5008 OKF-FPKG/US-100-DPF:
1. Product Name:
- IFM Fibre-optic Amplifier OK5008 OKF-FPKG/US-100-DPF
2. Description:
- The OK5008 OKF-FPKG/US-100-DPF is a fibre-optic amplifier from IFM Electronics.
- Fibre-optic amplifiers are used in conjunction with fibre-optic sensors to provide amplification and signal processing capabilities.
3. Key Features:
- Digital display for easy monitoring of signal strength
- Automatic sensitivity adjustment
- PNP/NPN switching output
- Compact and robust design with a plastic housing
- Protection rating of IP67 for use in harsh environments
4. Applications:
- The IFM OK5008 OKF-FPKG/US-100-DPF fibre-optic amplifier is suitable for a variety of industrial automation and control applications, such as:
- Object detection and presence/absence monitoring
- Position and movement detection
- Automation of industrial machinery and equipment
- Hazardous area monitoring
5. Connectivity:
- The amplifier has a 4-wire DC connection:
- 1 x Brown (L+)
- 1 x Blue (L-)
- 1 x Black (PNP/NPN switching output)
- 1 x White (Analogue output)
- The amplifier can be easily integrated into industrial control systems and automation networks.
6. Capabilities:
- Digital display for easy monitoring of signal strength
- Automatic sensitivity adjustment for optimal performance
- PNP/NPN switching output for object detection
- Compact and robust plastic housing with IP67 rating
7. Compatibility:
- The IFM OK5008 OKF-FPKG/US-100-DPF fibre-optic amplifier is designed to be compatible with a wide range of industrial automation and control systems.
- It can be integrated with programmable logic controllers (PLCs), motion control systems, and other industrial control equipment.
The OK5008 OKF-FPKG/US-100-DPF is a versatile and robust fibre-optic amplifier from IFM Electronics, featuring a digital display, automatic sensitivity adjustment, and PNP/NPN switching output. Its compact plastic housing and IP67 rating make it suitable for a variety of industrial automation and control applications, such as object detection, presence/absence monitoring, and position/movement detection, especially in harsh environments.
If you have any further questions about the IFM OK5008 OKF-FPKG/US-100-DPF fibre-optic amplifier or need additional information, please don't hesitate to ask.
Product characteristics
| Type of light |
red light |
| Housing |
rectangular |
Electrical data
| Operating voltage [V] |
10...36 DC |
| Current consumption [mA] |
30; ((24 V)) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
660 |
Outputs
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
250 |
| Switching frequency DC [Hz] |
120 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
Detection zone
| Range [m] |
0...0.12; (Through-beam sensor) |
| Range [mm] |
0...40; (Diffuse reflection sensor) |
| Range adjustable |
yes |
Operating conditions
| Ambient temperature [°C] |
-25...60 |
| Protection |
IP 65 |
Tests / approvals
| EMC |
| EN 60947-5-2 |
|
| EN 55011 |
class B |
|
| MTTF [years] |
529 |
Mechanical data
| Weight [g] |
66 |
| Housing |
rectangular |
| Dimensions [mm] |
50 x 19 x 35 |
| Materials |
PPO modified |
| Lens alignment |
side lens |
Displays / operating elements
| Display |
| switching status |
1 x LED, yellow |
|
