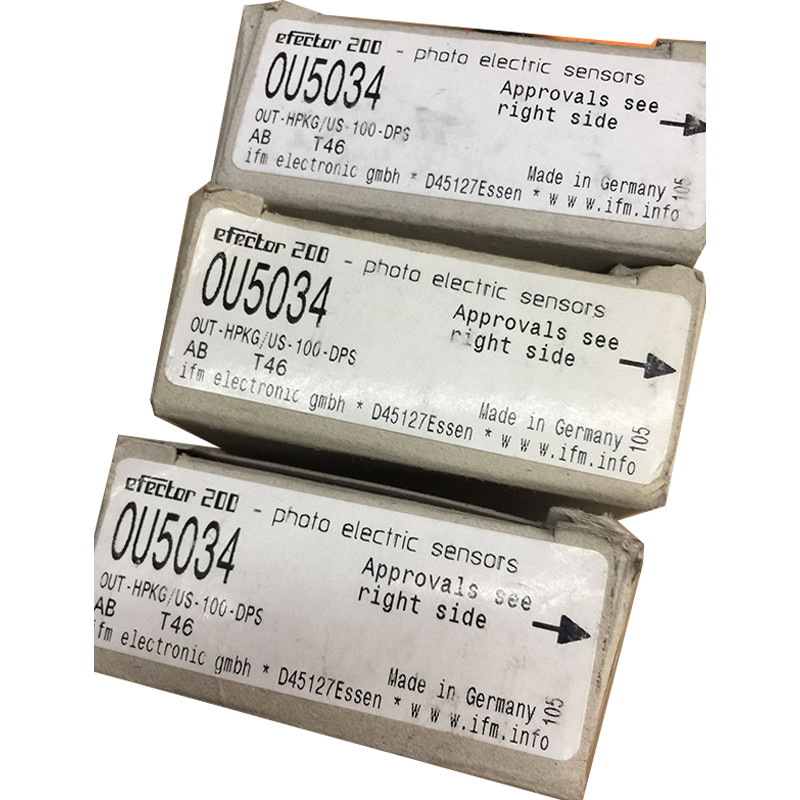

Diffuse Reflection IFM Photoelectric Sensors OU5034 OUT-HPKG/US-100-DPS

IFM Diffuse reflection sensor OU5034 OUT-HPKG/US-100-DPS
Okay, let's take a look at the details of the IFM Diffuse Reflection Sensor OU5034 OUT-HPKG/US-100-DPS:
1. Product Name:
- IFM Diffuse Reflection Sensor OU5034 OUT-HPKG/US-100-DPS
2. Description:
- The OU5034 OUT-HPKG/US-100-DPS is a diffuse reflection sensor from IFM Electronics.
- Diffuse reflection sensors are used to detect the presence or absence of an object by reflecting a beam of light off the object's surface.
3. Key Features:
- Infrared LED light source for reliable object detection
- Adjustable sensing range up to 100 mm
- PNP/NPN switching output with NO/NC function
- Compact and robust stainless steel housing
- Protection rating of IP67 for use in harsh environments
4. Applications:
- The IFM OU5034 OUT-HPKG/US-100-DPS diffuse reflection sensor is suitable for a wide range of industrial applications, such as:
- Object detection and presence/absence monitoring
- Part counting and positioning
- Conveyor belt monitoring and control
- Robotic and automated machine applications
5. Connectivity:
- The sensor has a 4-wire DC connection:
- 1 x Brown (L+)
- 1 x Blue (L-)
- 1 x Black (PNP/NPN switching output)
- 1 x White (NO/NC function)
- The sensor can be easily integrated into industrial control systems and automation networks.
6. Capabilities:
- Infrared LED light source for reliable object detection
- Adjustable sensing range up to 100 mm for flexible installation
- PNP/NPN switching output with NO/NC function for versatile integration
- Compact and robust stainless steel housing with IP67 protection rating for use in harsh environments
7. Compatibility:
- The IFM OU5034 OUT-HPKG/US-100-DPS diffuse reflection sensor is designed to be compatible with a wide range of industrial automation and control systems.
- It can be integrated with programmable logic controllers (PLCs), motion control systems, and other industrial control equipment.
The OU5034 OUT-HPKG/US-100-DPS is a versatile and reliable diffuse reflection sensor from IFM Electronics, with an infrared LED light source, adjustable sensing range, and PNP/NPN switching output. Its compact and robust stainless steel housing, along with an IP67 protection rating, make it suitable for use in a variety of industrial applications, including object detection, part counting, and conveyor belt monitoring.
If you have any further questions about the IFM OU5034 OUT-HPKG/US-100-DPS diffuse reflection sensor or need additional information, please don't hesitate to ask.
