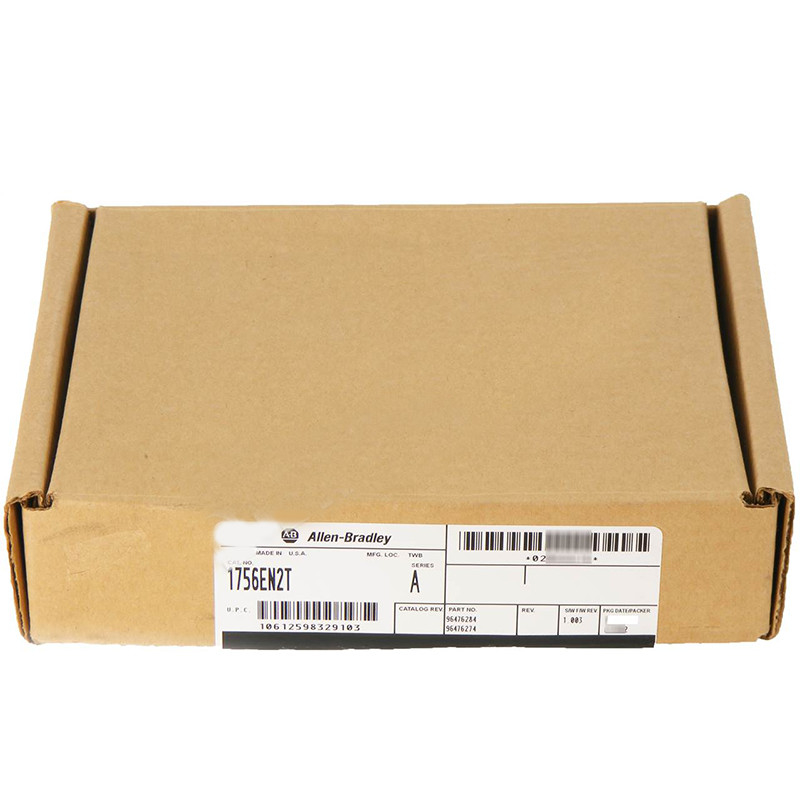

Allen Bradley 1756-EN2T Best Selling CLX ENet/IP 100M
Okay, let's take a closer look at the Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module:
1. Product Name:
- Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module
2. Description:
- The 1756-EN2T is a communication module for the Allen-Bradley ControlLogix programmable automation controller (PAC) system.
- It provides high-speed EtherNet/IP connectivity for ControlLogix control systems.
3. Key Features:
- Supports EtherNet/IP communication at 100 Mbps
- Provides two EtherNet/IP ports for redundant network topology
- Allows for seamless integration of ControlLogix systems with Ethernet-based devices and networks
- Configurable using the Studio 5000 Logix Designer software
4. Applications:
- The 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module is commonly used in a wide range of industrial automation and control applications, including:
- Process control
- Machine control
- Building automation
- Supervisory control and data acquisition (SCADA) systems
5. Connectivity:
- The 1756-EN2T provides the following connectivity options:
- Two EtherNet/IP ports for high-speed network communication
- Backplane connection to the ControlLogix chassis
6. Capabilities:
- Supports EtherNet/IP communication at 100 Mbps
- Provides two EtherNet/IP ports for redundant network topology
- Enables seamless integration of ControlLogix systems with Ethernet-based devices and networks
- Configurable using the Studio 5000 Logix Designer software
7. Compatibility:
- The 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module is designed to be compatible with the Allen-Bradley ControlLogix PAC system.
- It can be installed in any available slot within a ControlLogix chassis, allowing for flexible integration into the control system.
- The module is supported by the Studio 5000 Logix Designer software, which is used to program, configure, and monitor ControlLogix-based control systems.
The Allen-Bradley 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module is a popular and widely used communication solution for ControlLogix-based control systems. Its support for high-speed EtherNet/IP communication, along with the redundant network topology provided by the two Ethernet ports, makes it a reliable and versatile choice for integrating ControlLogix systems with Ethernet-based devices and networks. The module's seamless integration with the Studio 5000 Logix Designer software further enhances the ease of use and configuration of ControlLogix-based control systems.
If you have any additional questions or need further information about the 1756-EN2T ControlLogix EtherNet/IP 100M Communication Module, please don't hesitate to ask.
| With optical interface |
No |
| Supporting protocol for TCP/IP |
Yes |
| Supporting protocol for DeviceNet |
No |
| Supporting protocol for other bus systems |
No |
| Redundancy |
No |
| IO link master |
No |
| Supporting protocol for DeviceNet Safety |
No |
| Supporting protocol for EtherNet/IP |
Yes |
| Power dissipation |
5.1 W |
| Thermal dissipation |
17.4 BTU/h |
| Enclosure type rating |
None (open-style) |
| Ethernet ports |
1 Ethernet RJ45 Category 5 |
| CIP unconnected messages |
128 + 128 (backplane + Ethernet) |
| Current draw |
1 A @ 5.1V DC, 3 mA @ 24V DC |
| Ethernet cable |
802.3 compliant shielded or unshielded twisted pair |
| Wiring category |
2 - on Ethernet ports, 3 - on USB ports |
| Communication rate |
10/100 Mbps |
| Connections supported, max |
TCP: 128, CIP: 256 (CIP connections can be used for all explicit or all implicit applications. for example, a 1756-ENBT module has a total of 128 CIP connections that can be used for any combination of connections.) |
| Isolation voltage |
30V (continuous), Basic Insulation Type, Ethernet to Backplane, USB to Backplane, and USB to Ethernet(Applies only to these modules/series: 1756-EN2T/D, 1756-EN2TR/C,1756-EN3TR/B), Type tested at 980V AC for 60 s |
| Supporting protocol for LON |
No |
| Supporting protocol for ASI |
No |
| Supporting protocol for PROFIBUS |
No |
| Supporting protocol for CAN |
No |
| Supporting protocol for INTERBUS |
No |
| Supporting protocol for KNX |
No |
| Supporting protocol for Modbus |
No |
| Supporting protocol for Data-Highway |
No |
| Supporting protocol for SUCONET |
No |
| With potential separation |
No |
| Supporting protocol for SERCOS |
No |
| Supporting protocol for INTERBUS-Safety |
No |
| Radio standard Bluetooth |
No |
| Radio standard Wi-Fi 802.11 |
No |
| Supporting protocol for AS-Interface Safety at Work |
No |
| Supporting protocol for Foundation Fieldbus |
No |
| Supporting protocol for PROFINET CBA |
No |
| Supporting protocol for PROFINET IO |
No |
| Supporting protocol for PROFIsafe |
No |
| Supporting protocol for SafetyBUS p |
No |
| Radio standard GPRS |
No |
| Radio standard GSM |
No |
| Radio standard UMTS |
No |
| Slot width |
1 |
| ATEX temp code |
T4 |
