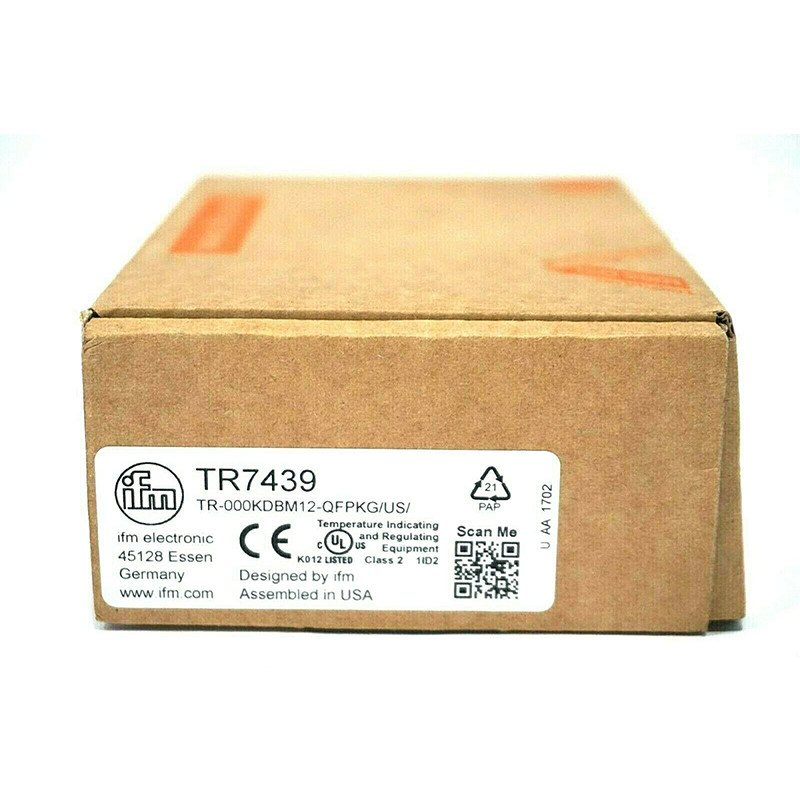

IFM TR7439 TR-000KDBM12-QFPKG/US/
Okay, let's review the details for the IFM TR7439 TR-000KDBM12-QFPKG/US/ temperature sensor:
1. Product Name:
- IFM TR7439 TR-000KDBM12-QFPKG/US/
2. Product Description:
- This is an IFM TR7439 temperature sensor with the following specifications:
- Model: TR-000KDBM12-QFPKG/US/
- Sensor type: Temperature
3. Key Features:
- Temperature measurement
- M12 connector
- Quad (4-wire) output
- Stainless steel housing
- Compact design
4. Technical Specifications:
- Measuring range: 0 to 100°C (32 to 212°F)
- Output signal: Quad (4-wire) output
- Ambient temperature: -40 to 85°C (-40 to 185°F)
- Ingress protection: IP67
- Process connection: M12 x 1
- Material: Stainless steel
5. Applications:
- The IFM TR7439 temperature sensor is suitable for a variety of industrial applications, such as:
- Process control
- HVAC systems
- Machinery monitoring
- General temperature measurement and monitoring
6. Installation and Configuration:
- The sensor can be installed using the M12 process connection.
- Electrical connection is made through the M12 connector.
- Configuration and setup may be required depending on the specific application and control system integration.
7. Certifications and Approvals:
- The IFM TR7439 sensor is generally designed to meet relevant industrial standards and regulations, but the exact certifications may vary based on the specific model and region of use.
In summary, the IFM TR7439 TR-000KDBM12-QFPKG/US/ is a compact, stainless steel temperature sensor with a quad (4-wire) output and M12 connector, suitable for various industrial temperature measurement and monitoring applications. Please let me know if you need any additional information or have further questions.
Product characteristics
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
| -100...600 °C |
-148...1112 °F |
|
| Communication interface |
IO-Link |
| Process connection |
threaded connection G 1/2 external thread |
Application
| Special feature |
Gold-plated contacts |
| Application |
for Pt100 and Pt1000 measuring elements |
Electrical data
| Operating voltage [V] |
18...32 DC; ("supply class 2" to cULus) |
| Current consumption [mA] |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
1 |
| Integrated watchdog |
yes |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 2 |
Outputs
| Total number of outputs |
2 |
| Output signal |
switching signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
250 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
Measuring/setting range
| Measuring range |
| -100...600 °C |
-148...1112 °F |
|
| Set point SP |
| -99.8...600 °C |
-147.6...1112 °F |
|
| Reset point rP |
| -100...599.8 °C |
-148...1111.6 °F |
|
| In steps of |
|
