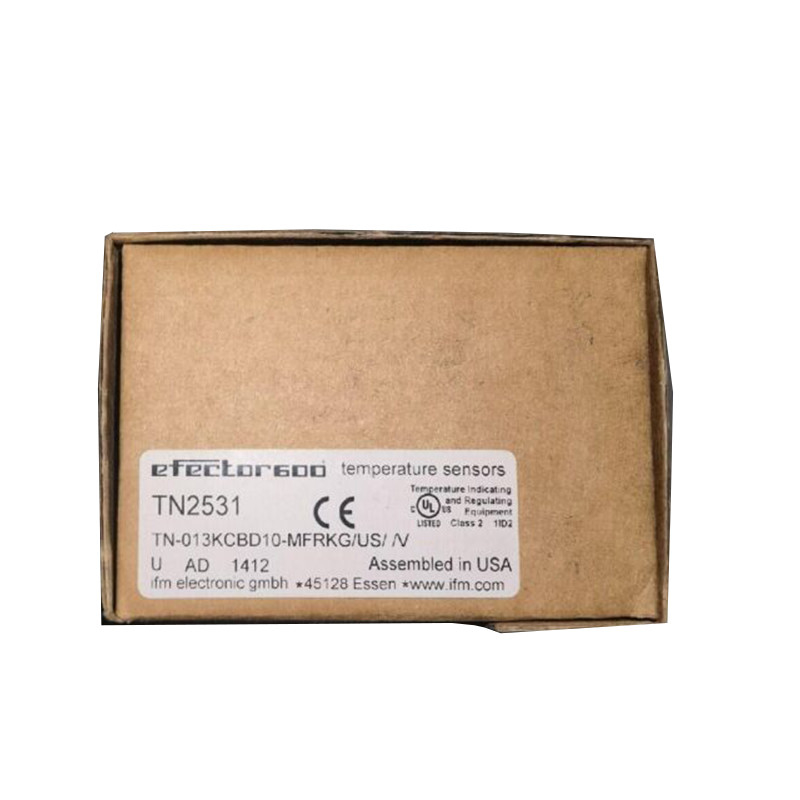

IFM TN2531 TN-013KCBD10-MFRKG/US/ /V
Okay, let's review the details for the IFM TN2531 TN-013KCBD10-MFRKG/US/ /V temperature sensor:
1. Product Name:
- IFM TN2531 TN-013KCBD10-MFRKG/US/ /V
2. Product Description:
- This is an IFM TN2531 temperature sensor with the following specifications:
- Model: TN-013KCBD10-MFRKG/US/ /V
- Sensor type: Temperature
3. Key Features:
- Temperature measurement
- M10 connection
- Analog (1-wire) output
- Stainless steel housing
- Compact design
4. Technical Specifications:
- Measuring range: -40 to 130°C (-40 to 266°F)
- Output signal: Analog (1-wire) output
- Ambient temperature: -40 to 85°C (-40 to 185°F)
- Ingress protection: IP67
- Process connection: M10 x 1
- Material: Stainless steel
5. Applications:
- The IFM TN2531 temperature sensor is suitable for a variety of industrial applications, such as:
- Process control
- HVAC systems
- Machinery monitoring
- General temperature measurement and monitoring
6. Installation and Configuration:
- The sensor can be installed using the M10 process connection.
- Electrical connection is made through the analog (1-wire) output.
- Configuration and setup may be required depending on the specific application and control system integration.
7. Certifications and Approvals:
- The IFM TN2531 sensor is generally designed to meet relevant industrial standards and regulations, but the exact certifications may vary based on the specific model and region of use.
In summary, the IFM TN2531 TN-013KCBD10-MFRKG/US/ /V is a compact, stainless steel temperature sensor with an analog (1-wire) output and M10 connection, suitable for various industrial temperature measurement and monitoring applications. Please let me know if you have any other questions.
Product characteristics
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
| Measuring range |
| -40...150 °C |
-40...302 °F |
|
| Communication interface |
IO-Link |
| Process connection |
threaded connection M18 x 1,5 internal thread |
| Installation length EL [mm] |
45 |
Application
| Special feature |
Gold-plated contacts |
| Measuring element |
1 x Pt 1000; (to DIN EN 60751, class B) |
| Media |
liquids and gases |
| Pressure rating [bar] |
300 |
| Minimum installation depth [mm] |
12 |
Electrical data
| Operating voltage [V] |
18...32 DC; ("supply class 2" to cULus) |
| Current consumption [mA] |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
1 |
| Integrated watchdog |
yes |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
Outputs
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
250 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20 |
| Max. load [Ω] |
(Ub - 10 V) x 50 |
| Analogue voltage output [V] |
0...10 |
| Min. load resistance [Ω] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
