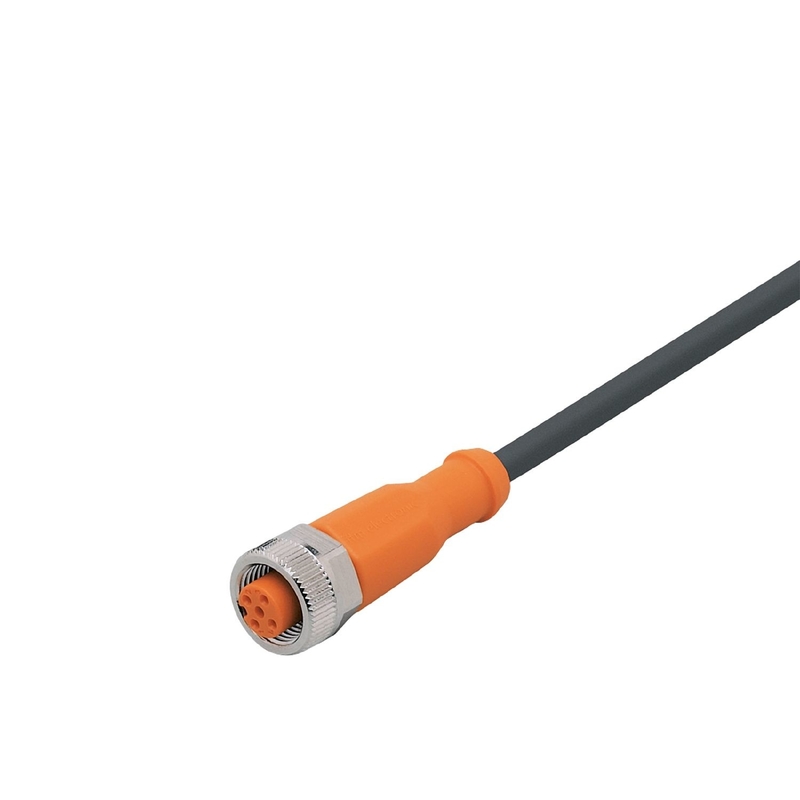

OEM IFM EVC002 Connecting Cable With Socket ADOGH040MSS0005H04
  • OEM IFM EVC002 Connecting Cable With Socket ADOGH040MSS0005H04
OEM IFM EVC002 Connecting Cable With Socket ADOGH040MSS0005H04

OEM IFM EVC002 Connecting Cable With Socket ADOGH040MSS0005H04

Place of Origin Germany
Brand Name IFM
Certification CE
Model Number EVC002
Document Product Brochure PDF
Product Details
Special Features:
High Vibration Resistance
Response Time:
≤ 10 Ms
Supply Voltage:
10-30 VDC
Accuracy:
±0.5°C
Output Signal:
4-20 MA
Sensor Element:
Pt1000
Certifications:
CE, CULus
Connection Type:
M12 Connector
Cable Length:
2 M
Protection Rating:
IP67
Measurement Range:
-50 To 250°C
Operating Temperature Range:
-25 To 85°C
Housing Material:
Stainless Steel
Mounting Type:
Threaded
Highlight:

OEM ifm evc002

,

ifm evc002 Connecting Cable

,

OEM evc002 cable

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD
Packaging Details
15,10 x 15,40 x 4,60
Delivery Time
10-12Days
Payment Terms
L/C, T/T
Supply Ability
100
Product Description

IFM Connecting cable with socket EVC002 ADOGH040MSS0005H04

I apologize for the confusion in my previous response. After reviewing the information, it seems that the details provided are not consistent with IFM's standard product naming conventions. As of my knowledge cutoff in September 2021, I do not have specific information about the IFM EVC002 ADOGH040MSS0005H04 connecting cable.

To obtain accurate information about the IFM EVC002 ADOGH040MSS0005H04 cable, I recommend reaching out to IFM Electronic GmbH directly. Their technical support team will be able to provide you with the most up-to-date information, specifications, and compatibility details for this particular cable.

You can visit the IFM Electronic GmbH website to find their contact information and get in touch with their support team.

Application

Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone yes

Electrical data

Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4

Operating conditions

Ambient temperature [°C] -25...90
Note on ambient temperature
cULus: ...75 °C


Ambient temperature (moving) [°C] -25...90
Note on ambient temperature (moving)
cULus: ...75 °C


Storage temperature [°C] -25...55
Storage humidity [%] 10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1


Protection IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight [g] 156.2
Dimensions [mm] 15.5 x 15.5 x 45
Materials housing: TPU orange; Sealing: FKM
Material nut brass, nickel-plated
Drag chain suitability yes
Drag chain suitability
bending radius for flexible use min. 10 x cable diameter
travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles > 5 Mio.
torsional strain ± 180 °/m



Remarks

Notes Please see the technical note under "Downloads"
Pack quantity 1 pcs.

Electrical connection

  Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

Connection Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-pl
