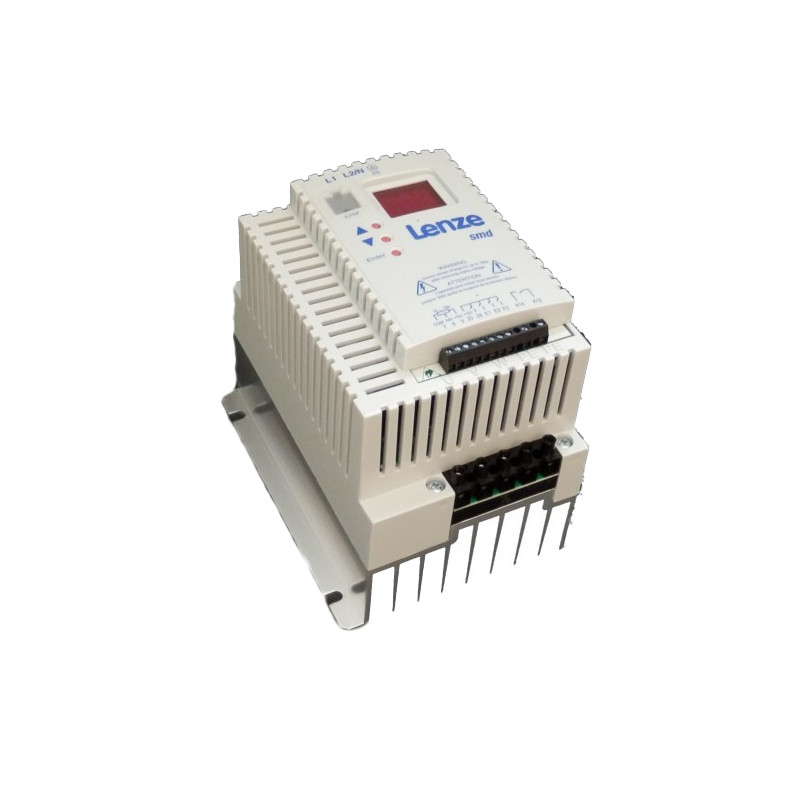

Okay, let's review the details for the Lenze SMD ESMD751L4TXA 0.75kW AC380V frequency inverter:

1. Product Name:
- Lenze SMD ESMD751L4TXA 0.75kW AC380V frequency inverter

2. Product Description:
- This is a Lenze SMD ESMD751L4TXA frequency inverter with the following key specifications:
- Model: ESMD751L4TXA
- Power rating: 0.75 kW (1 HP)
- Input voltage: 3-phase 380 VAC

3. Key Features:
- Variable frequency drive (VFD) for speed and torque control
- Compact and robust design
- IP20 degree of protection
- Integrated braking chopper
- Built-in EMC filters
- Numerous control and communication interfaces

4. Technical Specifications:
- Power rating: 0.75 kW (1 HP)
- Input voltage: 3-phase 380-480 VAC, 50/60 Hz
- Output voltage: 3-phase 0-480 VAC
- Output current: 2.4 A
- Frequency range: 0 to 599 Hz
- Overload capacity: 150% for 60 seconds
- Ambient temperature: -10 to 40°C (14 to 104°F)
- Degree of protection: IP20

5. Applications:
- The Lenze SMD ESMD751L4TXA frequency inverter is suitable for a variety of applications, such as:
- Conveyor systems
- Fans and pumps
- Material handling equipment
- General industrial automation

6. Installation and Configuration:
- The frequency inverter can be mounted on a DIN rail or panel-mounted.
- Electrical connections are made through the input/output terminals and communication interfaces.
- The inverter can be configured and programmed using the integrated control panel or through software tools.

7. Certifications and Approvals:
- The Lenze SMD ESMD751L4TXA frequency inverter is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific model and region of use.
