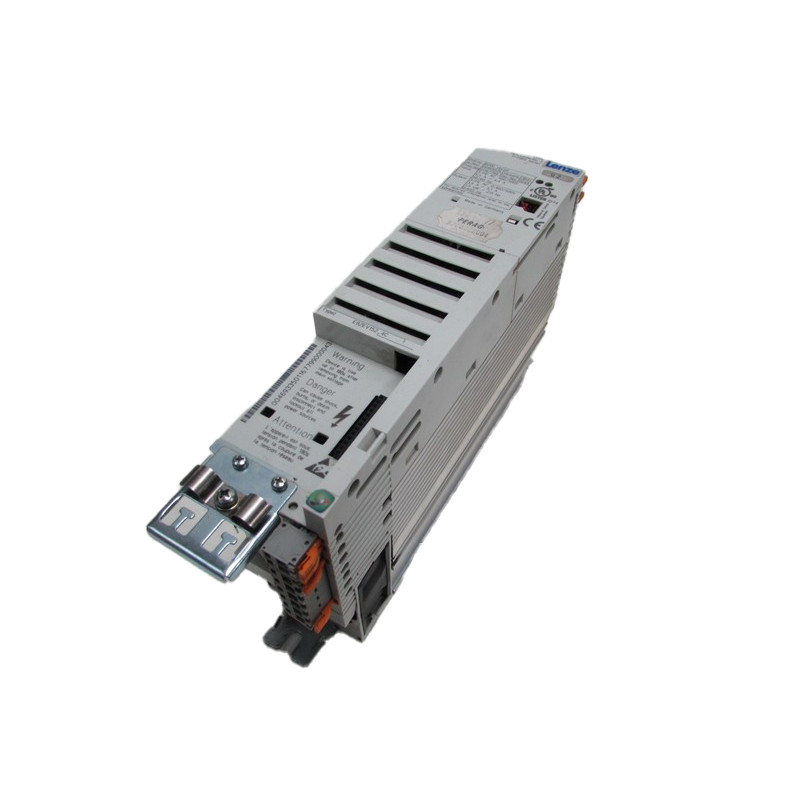

LENZE FREQUENCY CONVER E82EV903K4B201 90KW AC380V NVERTER 8200 VECTOR

LENZE FREQUENCY CONVER E82EV903K4B201 90KW AC380V NVERTER 8200 VECTOR

Okay, let's review the details for the Lenze E82EV903K4B201 90kW AC380V frequency converter:

1. Product Name:
- Lenze E82EV903K4B201 90kW AC380V frequency converter

2. Product Description:
- This is a Lenze E82EV903K4B201 frequency converter with the following key specifications:
- Model: E82EV903K4B201
- Power rating: 90 kW (120 HP)
- Input voltage: 3-phase 380 VAC

3. Key Features:
- E82EV series, part of the 8200 Vector product line
- Variable frequency drive (VFD) for precise speed and torque control
- Vector control for high-performance applications
- Compact and modular design
- IP20 degree of protection
- Integrated braking chopper
- Built-in EMC filters
- Numerous control and communication interfaces

4. Technical Specifications:
- Power rating: 90 kW (120 HP)
- Input voltage: 3-phase 380-480 VAC, 50/60 Hz
- Output voltage: 3-phase 0-480 VAC
- Output current: 178 A
- Frequency range: 0 to 599 Hz
- Overload capacity: 150% for 60 seconds
- Ambient temperature: -10 to 40°C (14 to 104°F)
- Degree of protection: IP20

5. Applications:
- The Lenze E82EV903K4B201 frequency converter is suitable for a wide range of high-power applications, including:
- Large conveyor systems
- Fans and pumps for industrial processes
- Heavy-duty material handling equipment
- High-performance industrial automation

6. Installation and Configuration:
- The frequency converter can be panel-mounted or installed in a cabinet.
- Electrical connections are made through the input/output terminals and communication interfaces.
- The converter can be configured and programmed using the integrated control panel or through software tools.

7. Certifications and Approvals:
- The Lenze E82EV903K4B201 frequency converter is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific model and region of use.
