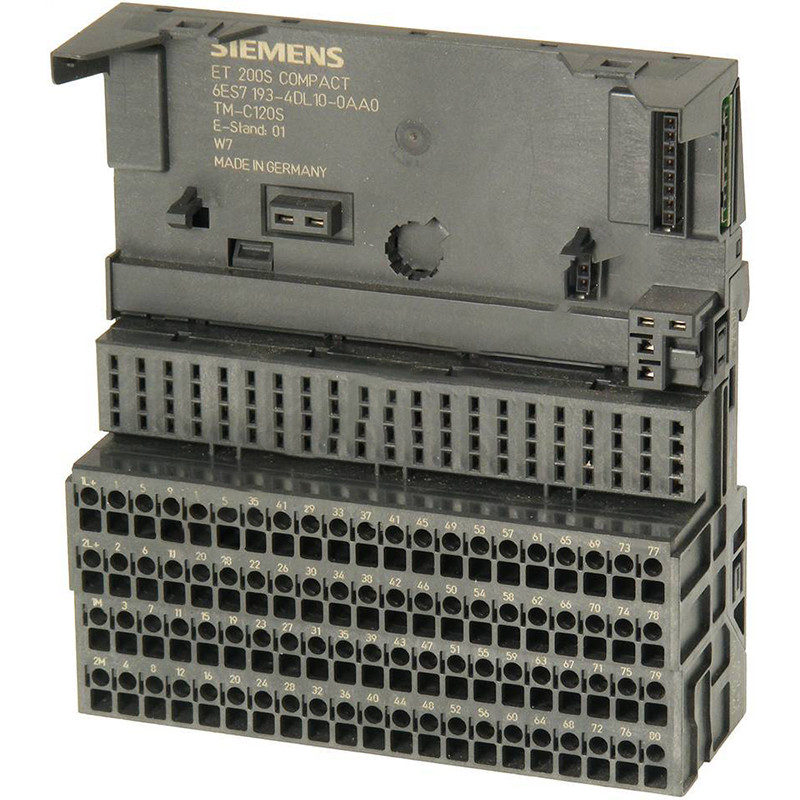

SIEMENS ET200S CPU Terminal Module 6ES7193-4DL10-0AA0 TM-C120S Screw Terminals

SIEMENS 6ES7193-4DL10-0AA0 ET200S TERMINAL MODULE TM-C120S, SCREW TERMINALS

Understood, let's take a closer look at the Siemens 6ES7193-4DL10-0AA0 ET200S Terminal Module TM-C120S with screw terminals:

1. Product Name:
- ET200S Terminal Module TM-C120S

2. Model Number:
- 6ES7193-4DL10-0AA0

3. Interface:
- This is a SIMATIC ET200S terminal module, providing a connection interface for the ET200S distributed I/O system.

4. Functionality:
- The terminal module serves as a modular connection point for wiring and integrating SIMATIC ET200S electronic modules (EM) and other field devices.
- It allows for the easy and flexible connection of sensors, actuators, and other I/O components to the ET200S system.

5. Features:
- The TM-C120S model has 120 screw-type connection terminals.
- The screw terminals provide a secure and reliable connection method.
- It includes a standard DIN rail mounting mechanism for easy installation.

6. Applications:
- This ET200S Terminal Module is well-suited for use in distributed I/O applications that employ the SIMATIC ET200S system.
- It enables the modular integration of a large number of field devices and sensors into the ET200S network.
- The screw-type terminals are a good choice for applications where vibration is not a major concern and where connection changes are less frequent.

7. Compatibility:
- As an ET200S component, this terminal module is designed to be compatible with other SIMATIC ET200S devices and systems.

The key difference between this 6ES7193-4DL10-0AA0 TM-C120S model and the previously discussed 6ES7193-4DL00-0AA0 TM-C120C model is the type of connection terminals used.

While the TM-C120C utilizes spring-loaded terminals, this TM-C120S model features screw-type terminals. The screw terminals provide a secure and reliable connection, but may require more time and effort for wiring compared to the spring-loaded design.

The screw-type terminals are well-suited for applications where vibration is not a major concern and where the connections are expected to be relatively static over time. This can be a more cost-effective solution in certain scenarios compared to the spring-loaded terminals.

Overall, the Siemens 6ES7193-4DL10-0AA0 ET200S Terminal Module TM-C120S with screw terminals is a versatile and flexible solution for integrating a wide range of field devices into SIMATIC ET200S distributed I/O systems, particularly in applications where vibration is not a significant issue.
